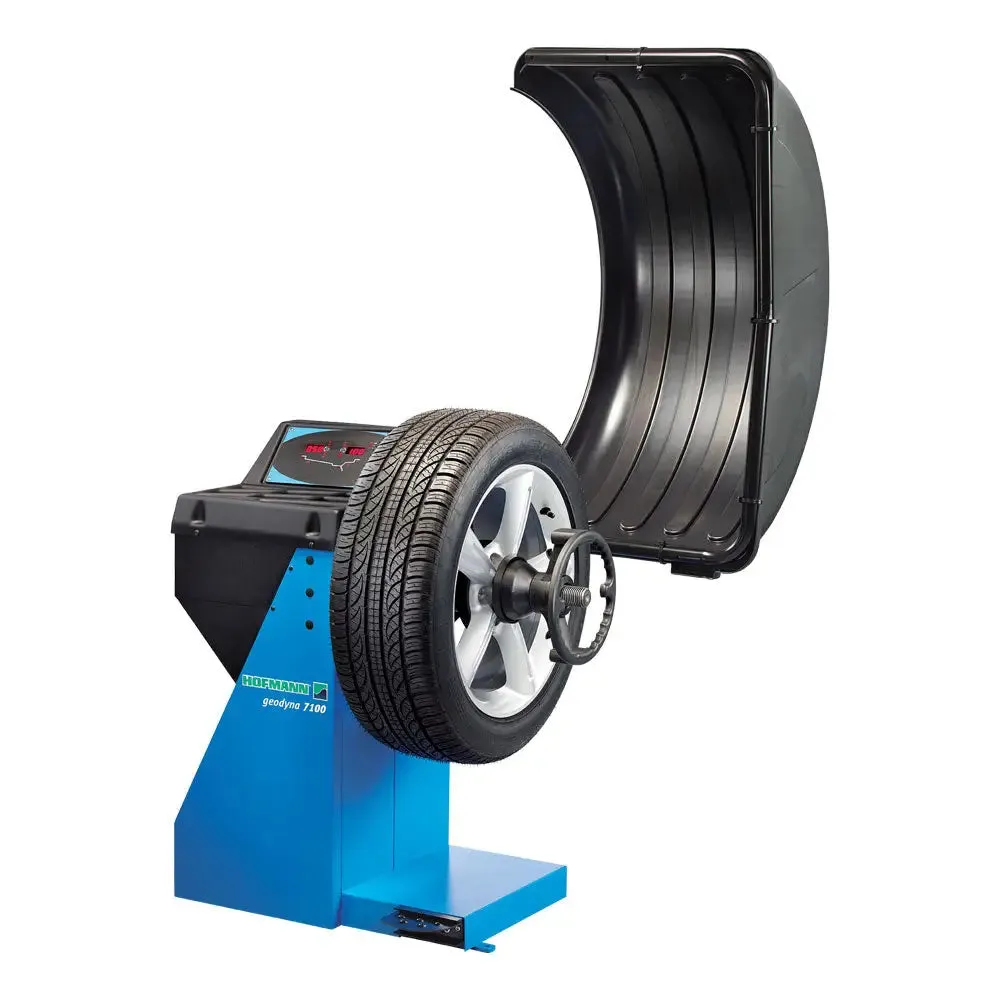

The Geodyna 7100 is a reliable balancer with a space-saving footprint. With its user-friendly 2D SAPE data entry and VPM measurement system, this balancer is an accurate and easy-to-use choice for cars and light trucks.
EZ-Collets - With this app, you can select a vehicle to find and compare options for the wheel's best collet, flange, or quick plate. You can also get information about the tire and rim of the vehicle. The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Features:
- Small footprint
- Semi-automatic input of offset and rim diameter via 2D SAPE
- Manual input of rim width
- Conspicuous and intuitive LED display
- Imbalance minimization and optimization programs

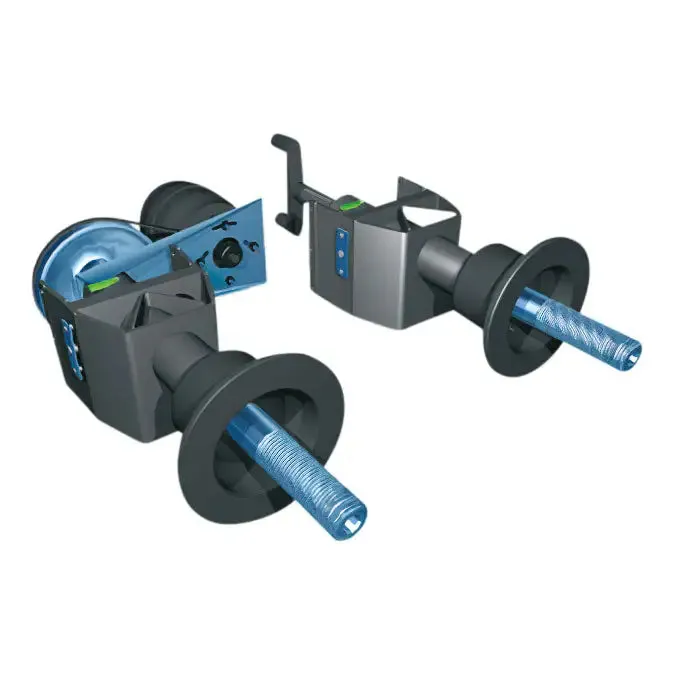

- VPI measurement technique for uncompromised accuracy
- QuickBal for reduced measurement time: Short start-stop cycle time: 6.5 seconds (15" rim)
- Measuring speed < 100 rpm

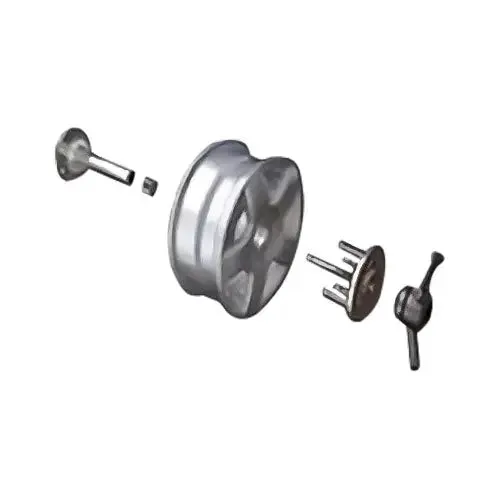

- Clamping of the wheel on integrated flange with quick nut
Specs:
Part number: EEWB761A230Vehicles supported: Passenger car, light truck, SUV, off-road
Display technology: Digital LED display
User interface: Touch panel integrated weight tray
Measuring speed: <100 RPM
Balancing accuracy: 0.035 oz / 1g
Angular resolution: ±0.35deg.
Start/stop time - check spin: 6 seconds.
Wheel clamping: Quick nut
Manual Data Entry
Rim diameter range: 8-32in
Offset range: 1-20in
Rim width range: 1-20in
Semi-automatic Data Entry (sape)

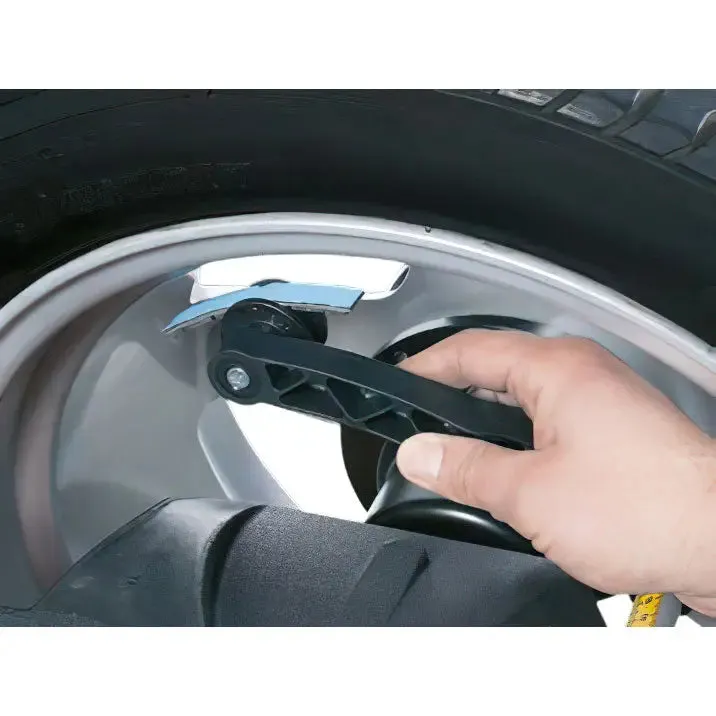

Data entry - diameter and offset: Semi-automatic, gauge arm
Data entry - wheel width: Manual
Rim diameter range: 8-25in
Rim width range: 1-20in
SAPE working range: 1.3-10.9in / 33-278mm
Software Features
Cycle start: Automatic after closing wheel guard
Balancing program selection: Manual
Spoke position detection: Manual
Multiple user capability: No
Stop in position: No
Rim lighting: No

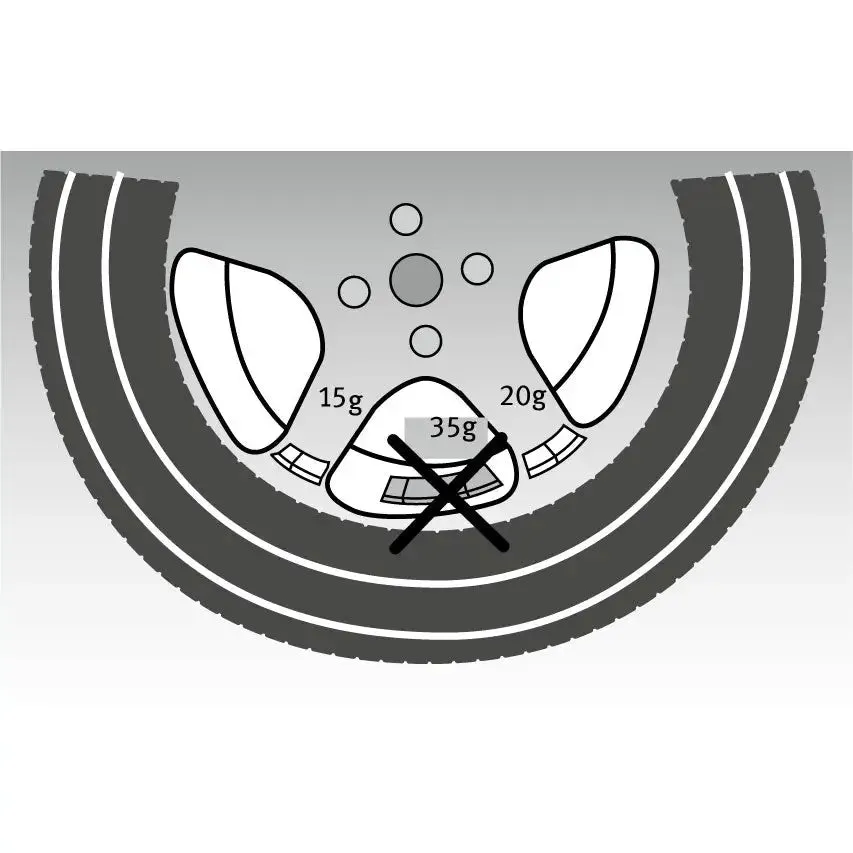

Split weight: Yes
Minimization: Yes
Optimization: Yes
Job counter: Yes
Network: No
Maximum Wheel Dimensions
Max. wheel diameter: 37.8in / 960mm
Wheel width range: 3-20in / 76-508mm
Max. wheel weight: 154 lbs / 70 kg
Additional Specifications
Diameter of shaft: 40mm
Length of shaft: 8.85in / 225mm
Main shaft lock: Mechanical
Wheel braking after measurement: Automatic
Power requirement: 230 VAC - 1Ph - 50/60Hz -5A
Power requirement (EEWB761A): 115 VAC - 1Ph - 50/60Hz - 5A
Machine dimensions L x W x H (wheel guard open):
- 43in x 40in x 67in (1100mm x 1005mm x 1711mm)
Machine net weight: 154 lbs / 70 kg
Ref No.:
7100M / EEWB761A230 (Motorcycle Model)
7100 / EEWB761AE1 (Car/LT Model)
Rim diameter range: 8-32in
Offset range: 1-20in
Rim width range: 1-20in
Semi-automatic Data Entry (sape)
Data entry - diameter and offset: Semi-automatic, gauge arm
Data entry - wheel width: Manual
Rim diameter range: 8-25in
Rim width range: 1-20in
SAPE working range: 1.3-10.9in / 33-278mm
Software Features
Cycle start: Automatic after closing wheel guard
Balancing program selection: Manual
Spoke position detection: Manual
Multiple user capability: No
Stop in position: No
Rim lighting: No
Split weight: Yes
Minimization: Yes
Optimization: Yes
Job counter: Yes
Network: No
Maximum Wheel Dimensions
Max. wheel diameter: 37.8in / 960mm
Wheel width range: 3-20in / 76-508mm
Max. wheel weight: 154 lbs / 70 kg
Additional Specifications
Diameter of shaft: 40mm
Length of shaft: 8.85in / 225mm
Main shaft lock: Mechanical
Wheel braking after measurement: Automatic
Power requirement: 230 VAC - 1Ph - 50/60Hz -5A
Power requirement (EEWB761A): 115 VAC - 1Ph - 50/60Hz - 5A
Machine dimensions L x W x H (wheel guard open):
- 43in x 40in x 67in (1100mm x 1005mm x 1711mm)
Machine net weight: 154 lbs / 70 kg
Ref No.:
7100M / EEWB761A230 (Motorcycle Model)
7100 / EEWB761AE1 (Car/LT Model)
Application:
CarLight Truck
